Nav Bar

Overview

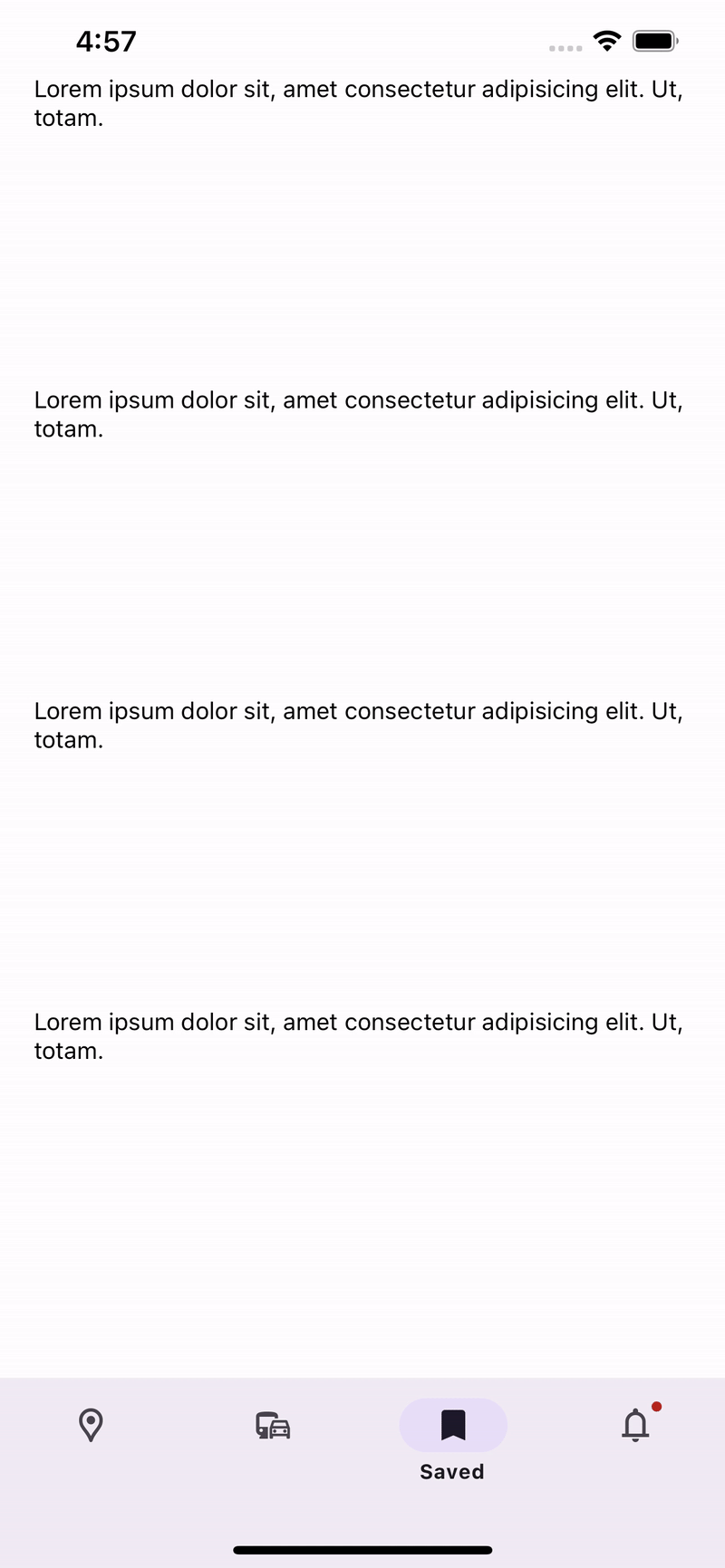

The Navigation Bar (NavBar) component is a customizable navigation tool that allows users to switch between different sections of an app. It supports animations on scroll, badges, and customizable icons.

Properties

name	description	type	default
routes	Required. Array of navigation routes.	NavBarRoute<T, Y>[]	-
activeRouteName	Required. The name of the currently active route.	T	-
onRoutePress	Required. Function to handle route changes when a route is pressed.	(route: T) => void	-
damping	Controls the animation damping effect for transitions.	number	20
fixedLabelVisibility	If true, ensures labels remain visible regardless of the icon.	boolean	false
scrollDirection	Determines the scroll behavior (UP or DOWN). Allows hiding/showing NavBar on scroll.	ScrollDirection	-
containerStyle	Custom styles for the NavBar container.	ViewStyle	false

Route Structure

The routes property accepts an array of NavBarRoute objects. Each route is structured as follows:

export interface NavBarRoute<T, Y> {
  name: T;                       // Route name
  icon: React.FC<Y>;             // Icon component for the route
  selectedIcon: React.FC<Y>;     // Icon component for the active route
  label?: string;                // Optional label for the route
  badge?: string;                // Optional badge text
  showBadge?: boolean;           // Optional boolean to show/hide badge (useful if you use SMALL badge size and don't provide badge value)
  badgeSize?: BadgeSize;         // Optional size of the badge
  iconProps?: Y;                 // Optional props for the icon components
}

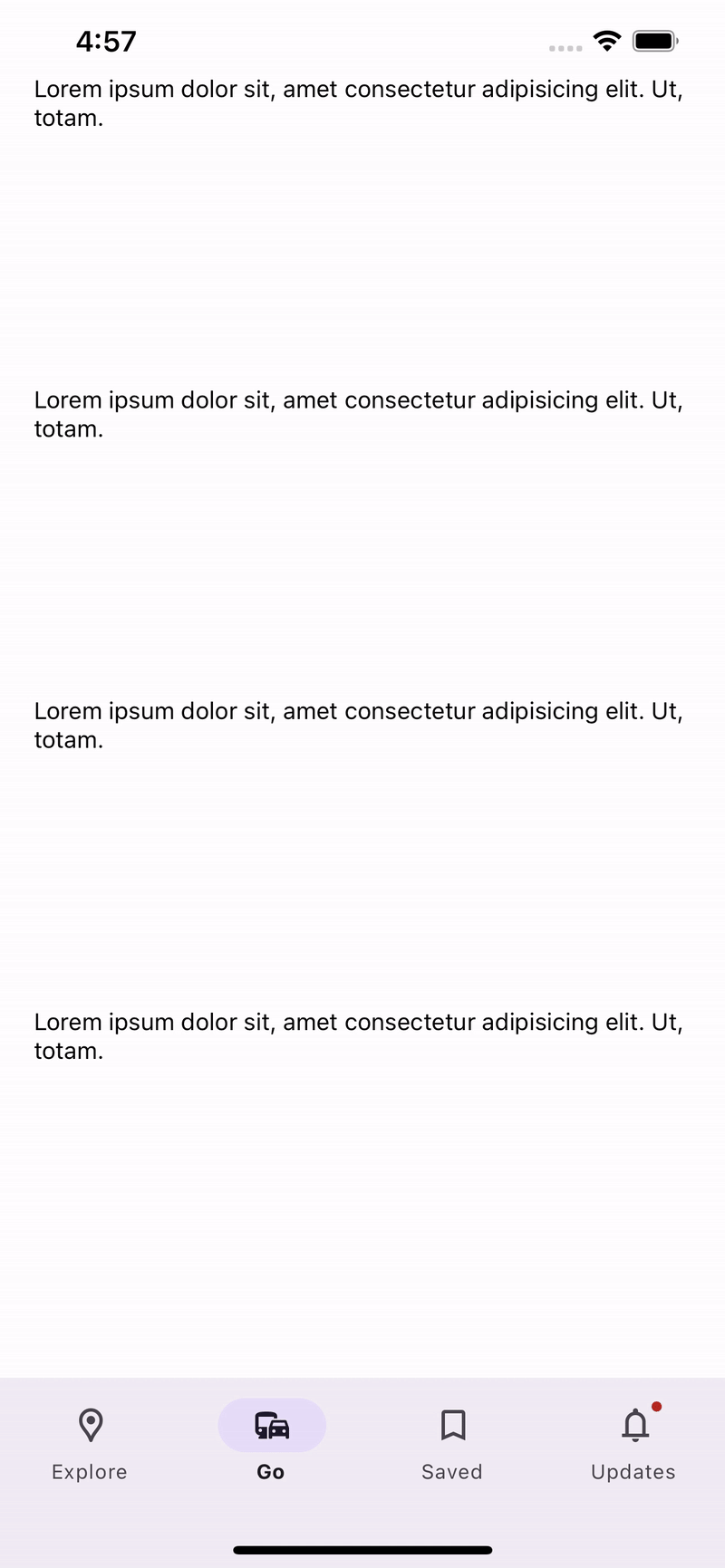

Scroll Animation Example

To enable animation on scroll, use the Animated.ScrollView and manage the scrollDirection and scrollContext values dynamically.

import { Animated, NativeSyntheticEvent, NativeScrollEvent } from 'react-native';

export const MyComponent: React.FC = () => {
  const scrollDirection = useSharedValue(ScrollDirection.UP);
  const scrollContext = useSharedValue(0);

  const onScroll = (e: NativeSyntheticEvent<NativeScrollEvent>) => {
    const currentOffsetY = e.nativeEvent.contentOffset.y;

    if (currentOffsetY <= 0 || currentOffsetY < scrollContext.value) {
      scrollDirection.value = ScrollDirection.UP;
    } else if (currentOffsetY >= scrollContext.value) {
      scrollDirection.value = ScrollDirection.DOWN;
    }

    scrollContext.value = currentOffsetY;
  };

  return (
    <>
      <Animated.ScrollView onScroll={onScroll}>
        {/* ScrollView content */}
      </Animated.ScrollView>
      <NavBar
        scrollDirection={scrollDirection}
        routes={routes}
        activeRouteName={activeRouteName}
        onRoutePress={setRoute}
      />
    </>
  );
};
